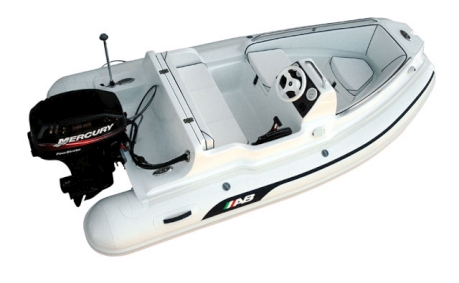

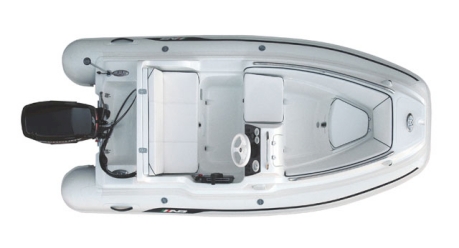

NAUTILUS DELUXE SERIES RIBS
The Nautilus (DLX) Series, beautifully crafted with elegant lines and a painstaking attention to detail, is our premier line of luxury tenders. The Nautilus line was created with the discerning yachtsman in mind. Its superior design is a reflection of the exceptional performance, comfort, and style sought by our most demanding customers. Each Nautilus model is meticulously hand crafted using only the finest materials, and richly appointed with an impressive array of amenities
| 11DLX | 12DLX | 13DLX | 14DLX | 15DLX | 17DLX | 19DLX | |
| Length | 11 0 (3.35m) | 12 3 (3.67m) | 13 2 (4.02m) | 14 0 (4.30m) | 15 0 (4.58m) | 17 0 (5.18m) | 19 0 (5.79m) |
| Beam | 5 10 (1.78m) | 6 (1.82m) | 6 5 (1.95m) | 6 6 (1.98m) | 6 9 (2.05m) | 8 1 (2.46m) | 8 4 (2.54m) |
| Ins. Length | 8 9 (2.60m) | 9 2 (2.76m) | 9 9 (2.97m) | 10 10 (3.30m) | 11 6 (3.50m) | 13 5 (4.23m) | 13 5 (4.23m) |
| Ins. Beam | 2 9 (0.78m) | 2 10 (0.86m) | 3 1 (0.94m) | 3 5 (1.04m) | 3 5 (1.04m) | 4 5 (1.35m) | 4 5 (1.35m) |
| Internal Area | 24.1 ft² (2.24 m²) | 26.1 ft² (2.40 m²) | 27.9 ft² (2.6 m²) | 36.9 ft² (3.43 m²) | 37.0 ft² (3.40 m²) | 56.0 ft² (5.20 m²) | 56.0 ft² (5.20 m²) |
| Weight | 442 lb (201kg) | 506 lb (230kg) | 589 lb (268kg) | 638 lb (290kg) | 682 lb (310kg) | 1078 lb (490kg) | 1430 lb (6502kg) |
| Max Person Cap. | 5 | 6 | 7 | 8 | 9 | 10 | 10 |
| Tube Diameter | 17 (0.43m) | 18 (0.46m) | 18 (0.46m) | 19 (0.48m) | 19 (0.48m) | 20 (0.51m) | 21 (0.54m) |
| Shaft Length | 20 | 20 | 20 | 20 | 20 | 20 | n/a |
| Shaft Twin Engines | n/a | n/a | n/a | n/a | n/a | n/a | n/a |
| Max Weight Cap. | 1240 lb (563kg) | 1456 lb (662kg) | 1659 lb (754kg) | 1971 lb (894kg) | 2033 lb (924kg) | 2895 lb (1316kg) | 2952 lb (1342kg) |
| Recd HP | 25hp (18.7kw) | 30hp (22.4kw) | 40hp (29.8kw) | 50hp (37.3kw) | 50hp (37.3kw) | 90hp (67.1kw) | 150hp (111.9kw) |
| Max HP | 40hp (29.8kw) | 40 hp (29.8kw) | 50 hp (37.3kw) | 60hp (44.8kw) | 75hp (56kw) | 115hp (85.8kw) | 220hp (164.1kw) |
| No. of Air Chambers | 3 | 3 | 3 | 4 | 4 | 4 | 5 |
| Fuel Tank Cap. | 10.5 gal (40 lt) | 11 gal (43 lt) | 18 gal (70 lt) | 21 gal (80 lt) | 26.4 gal (100 lt) | 33 gal (125 lt) | 63.4 gal (240 lt) |
| Water Tank Cap. | n/a | n/a | n/a | 8 gal (30 lt) | 9.2 gal (35 lt) | 10 gal (38 lt) | 10.5 gal (40 lt) |
